22 April 2009 – Ring Beam Me Up

April 22, 2009 Greg Traverso Uncategorized

Hello out there,

.

In my continuing, and only partially successful attempt to fill in the gaps for you in our construction process, here’s a look at how we made the ring beam. It had to connect all the interior and exterior walls and the thirteen posts in a continuous 200 x 300 mm (8″ x 12″) reinforced concrete structure that would tie the whole building together and give it lateral stability and weight bearing capacity for what was to go above it. It’s right on top of the walls and lintels and just below the gables.  Don’t worry, it will make sense as we go along.

.
.

[singlepic id=1707 w=320 h=240 float=]

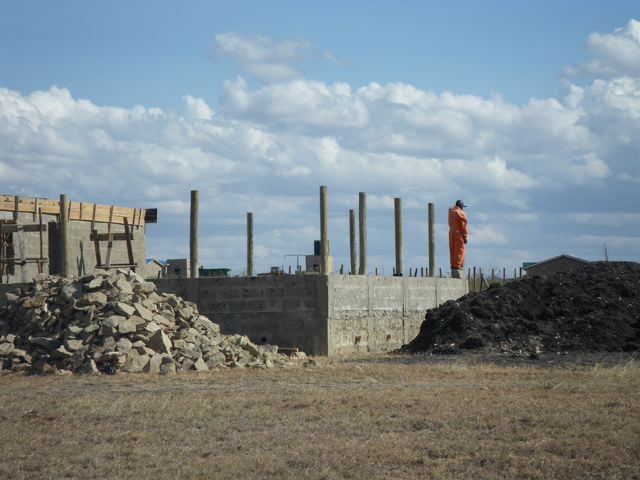

You remember that the poles look like this.

.

.

[singlepic id=1705 w=320 h=240 float=]

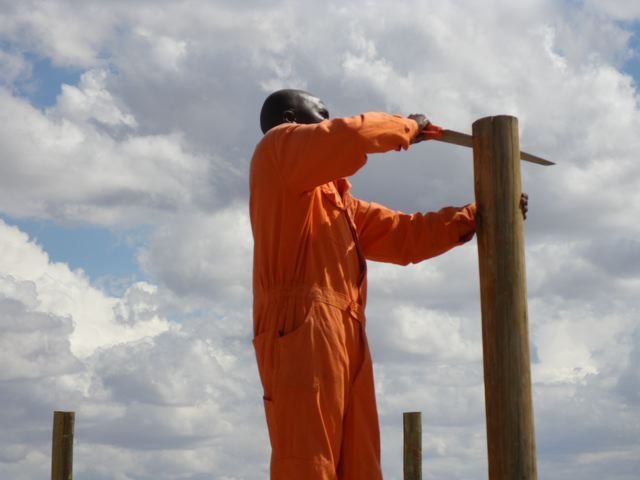

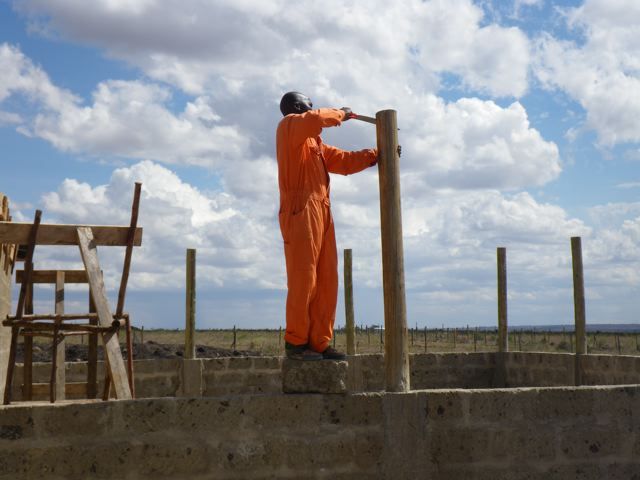

We had to cut them all to the exact same height.

.

.

[singlepic id=1706 w=320 h=240 float=]

.

.

[singlepic id=1704 w=320 h=240 float=]

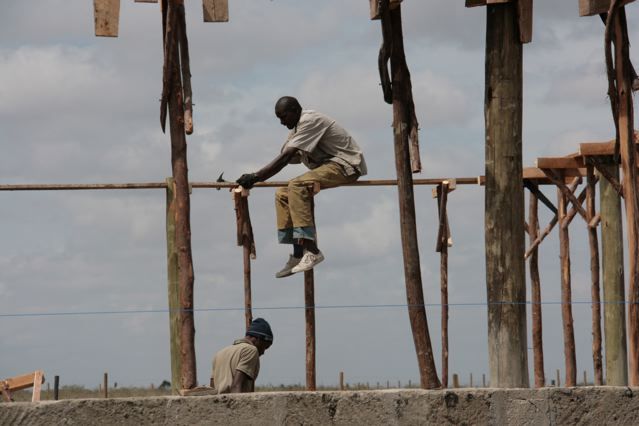

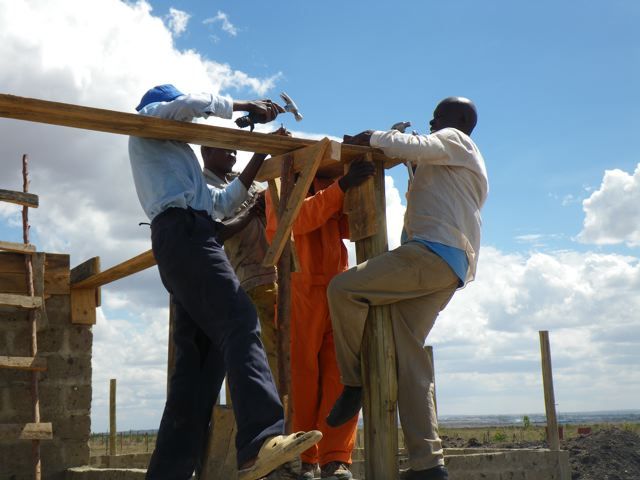

And begin to connect them with 1″ x 8″ boards. Chiseled to mate with the round poles.

.

.

[singlepic id=1693 w=320 h=240 float=]

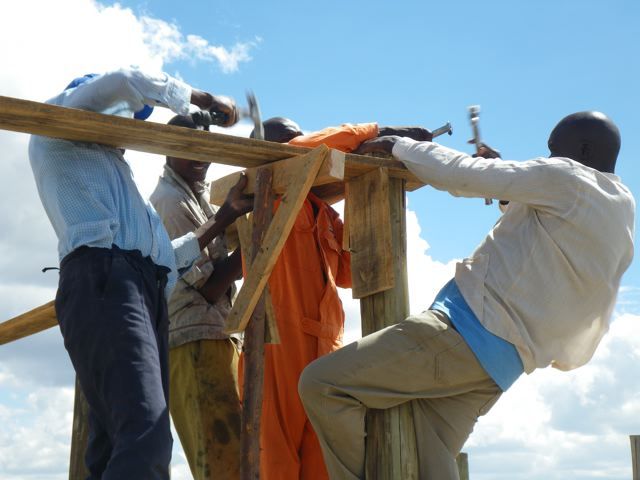

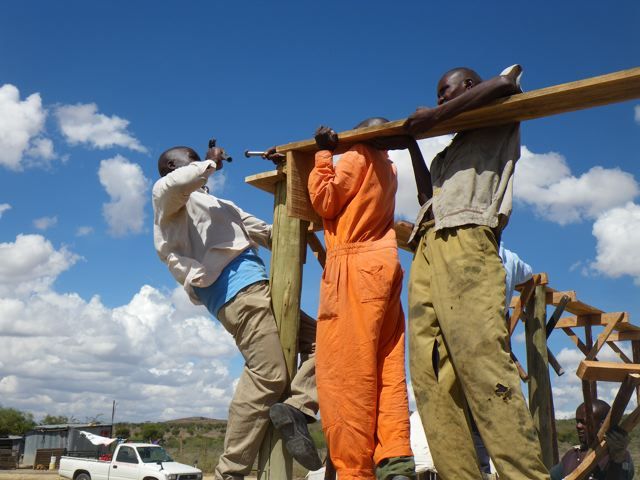

This at times looked more like group dancing than carpentry.

.

.

[singlepic id=1694 w=320 h=240 float=]

.

.

[singlepic id=1695 w=320 h=240 float=]

.

.

[singlepic id=1696 w=320 h=240 float=]

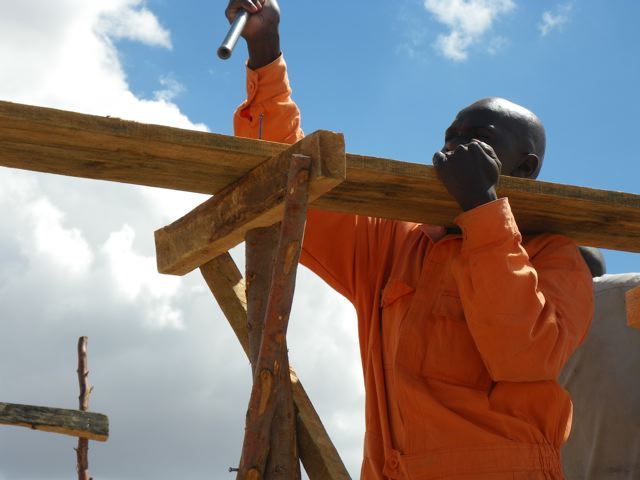

And involved a certain trust on the chisel holder’s part.

.

.

[singlepic id=1701 w=320 h=240 float=]

Eventually, we had a very long, very high bench. Which one could sit on,

.

.

[singlepic id=1712 w=320 h=240 float=]

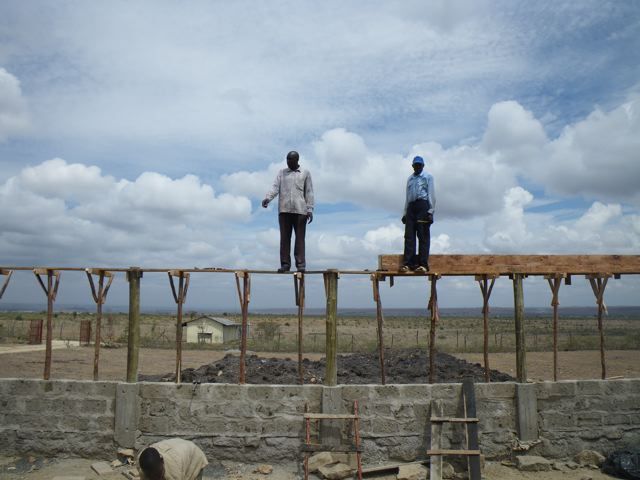

or stand on,

.

.

[singlepic id=1711 w=320 h=240 float=]

or invite a friend to.

.

.

[singlepic id=1713 w=320 h=240 float=]

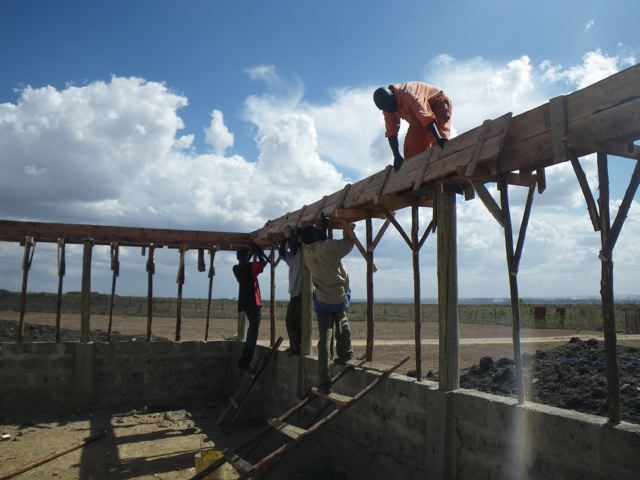

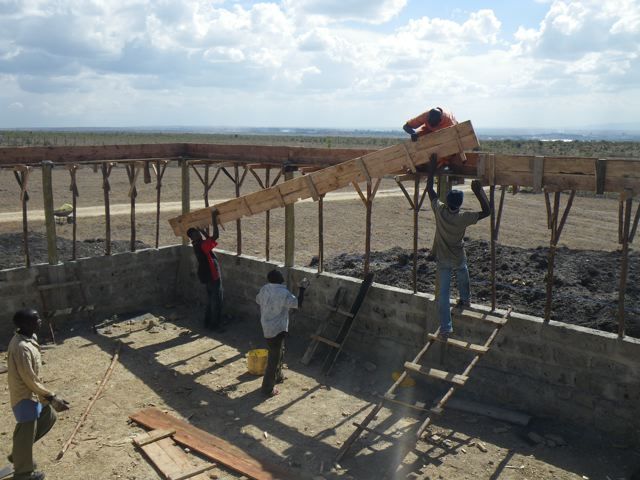

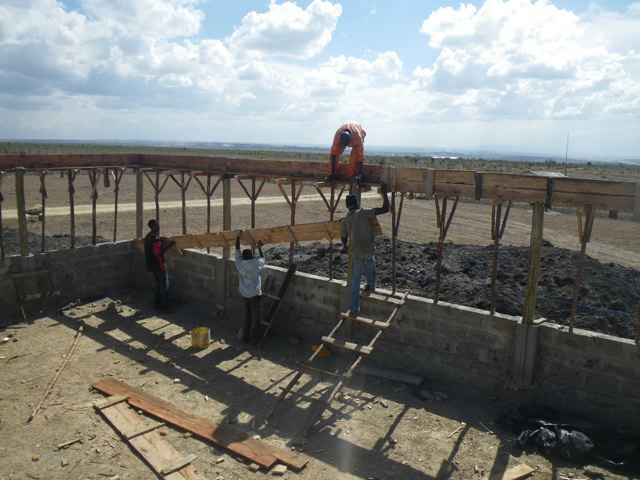

Before long it had sides

.

.

[singlepic id=1714 w=320 h=240 float=]

.

.

[singlepic id=1715 w=320 h=240 float=]

and the bench became a flume.

.

.

[singlepic id=1718 w=320 h=240 float=]

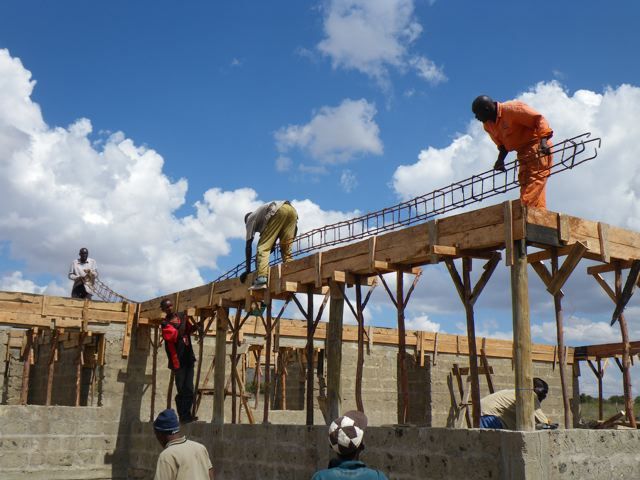

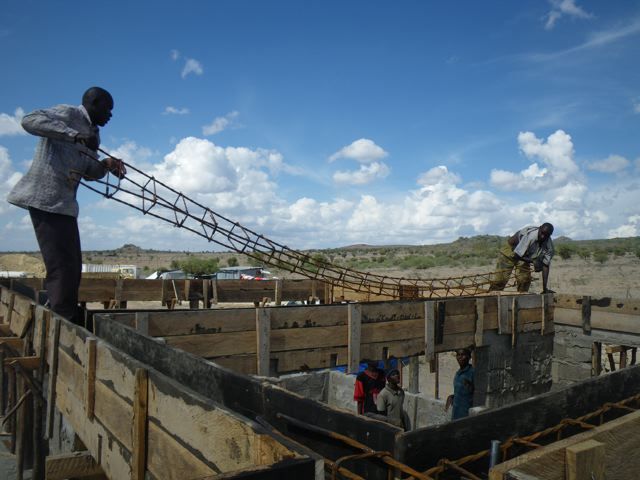

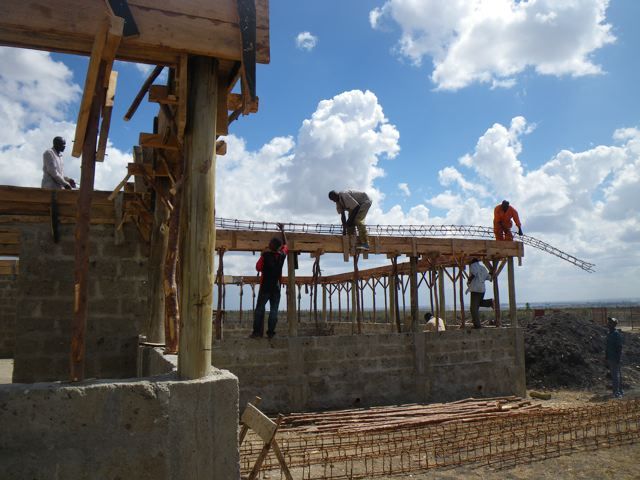

We added the steel reinforcing.

.

.

[singlepic id=1719 w=320 h=240 float=]

.

.

[singlepic id=1716 w=320 h=240 float=]

.

.

It was time now for George the electrician to run the plastic conduit to all its places in the form.

.

.

[singlepic id=1720 w=320 h=240 float=]

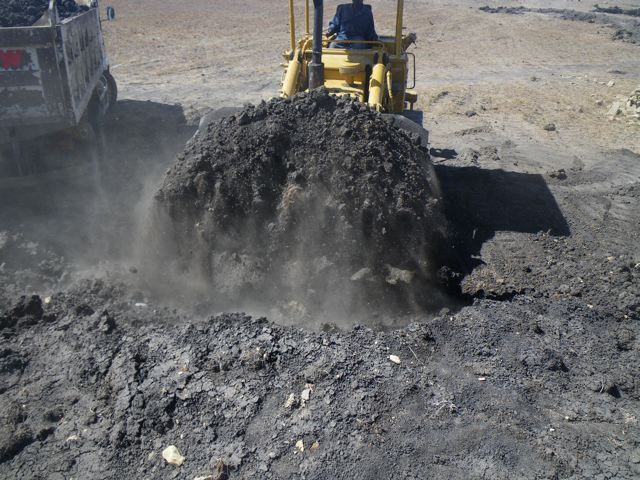

Meanwhile the excavator kept at it,

.

.

[singlepic id=1725 w=320 h=240 float=]

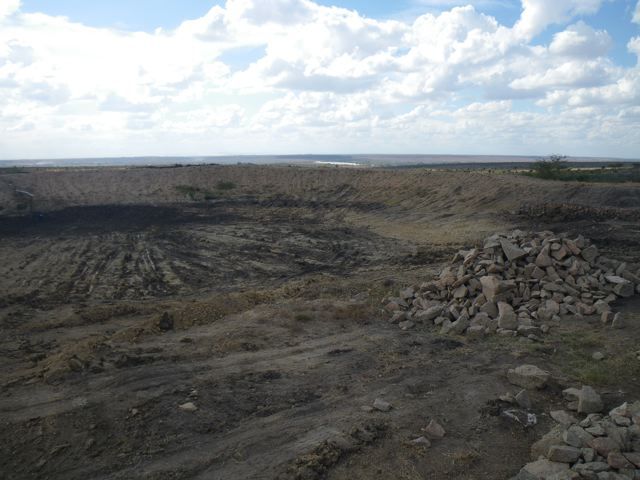

and one late afternoon, we had a deepened and de-silted dam

.

.

[singlepic id=1721 w=320 h=240 float=]

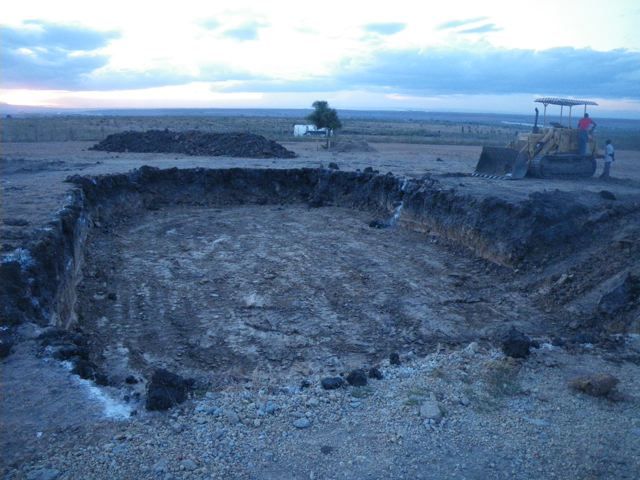

both of the building foundations excavated,

.

.

[singlepic id=1722 w=320 h=240 float=]

.

.

[singlepic id=1723 w=320 h=240 float=]

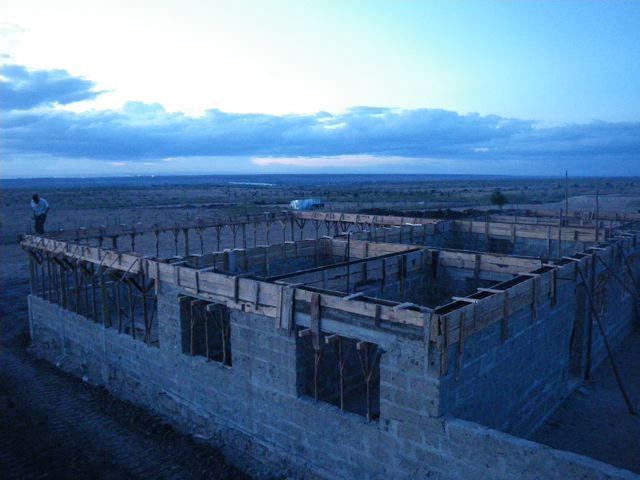

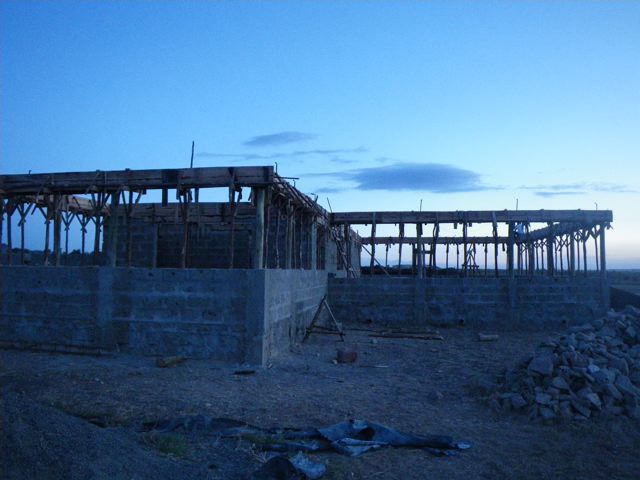

a finished ring beam form,

.

.

[singlepic id=1724 w=320 h=240 float=]

and the electrician was laying in the last of the conduit.

.

.

[singlepic id=1717 w=320 h=240 float=]

We all called it a day and went home to eat and sleep and get ready to pour the ring beam concrete the next day.

.

You can read all about that here soon.

.

.

Your construction beat reporter,

.

David
